MIGCON MX-RHT temperature and humidity transmitter with LCD display

Temperature Humidity Transmitter

Model MX-RHT

  • Full-range measurement — −40 to 80°C and 0–100% RH, so one unit covers cold storage, server rooms and humid polyhouses.
  • ±0.5°C / ±3% RH accuracy — 0.1% RH resolution, tight enough for compliance logging and BMS control loops.
  • Four output options — RS485 Modbus for daisy-chaining, or 4-20mA, 0-5V, 0-10V straight into an existing BMS input.
  • Two build options — with or without front display; built-in sensor or 1 m external probe for ducts and enclosures.
Enquire Now View Specifications

Category Transmitter

Tags temperature, humidity, RS485, Modbus, 4-20mA, HVAC, data centre, greenhouse

Brand MIGCON

Power Supply10~30 Vdc
Temperature Range-40 to 80°C
Humidity Range0-100% RH
Precision±0.5°C (25°C), ±3% RH (60% RH, 25°C)
Resolution0.5°C, 0.1% RH
Operating Temperature-20℃ ~ +60°C, 0% ~ 95% RH (non-condensing)
Output SignalRS485 (Modbus), 4-20mA, 0-5V, 0-10V
Dimensions130 × 70 × 50 mm
OptionsWith / without display; built-in sensor or external probe (1 m)

Related Transmitters

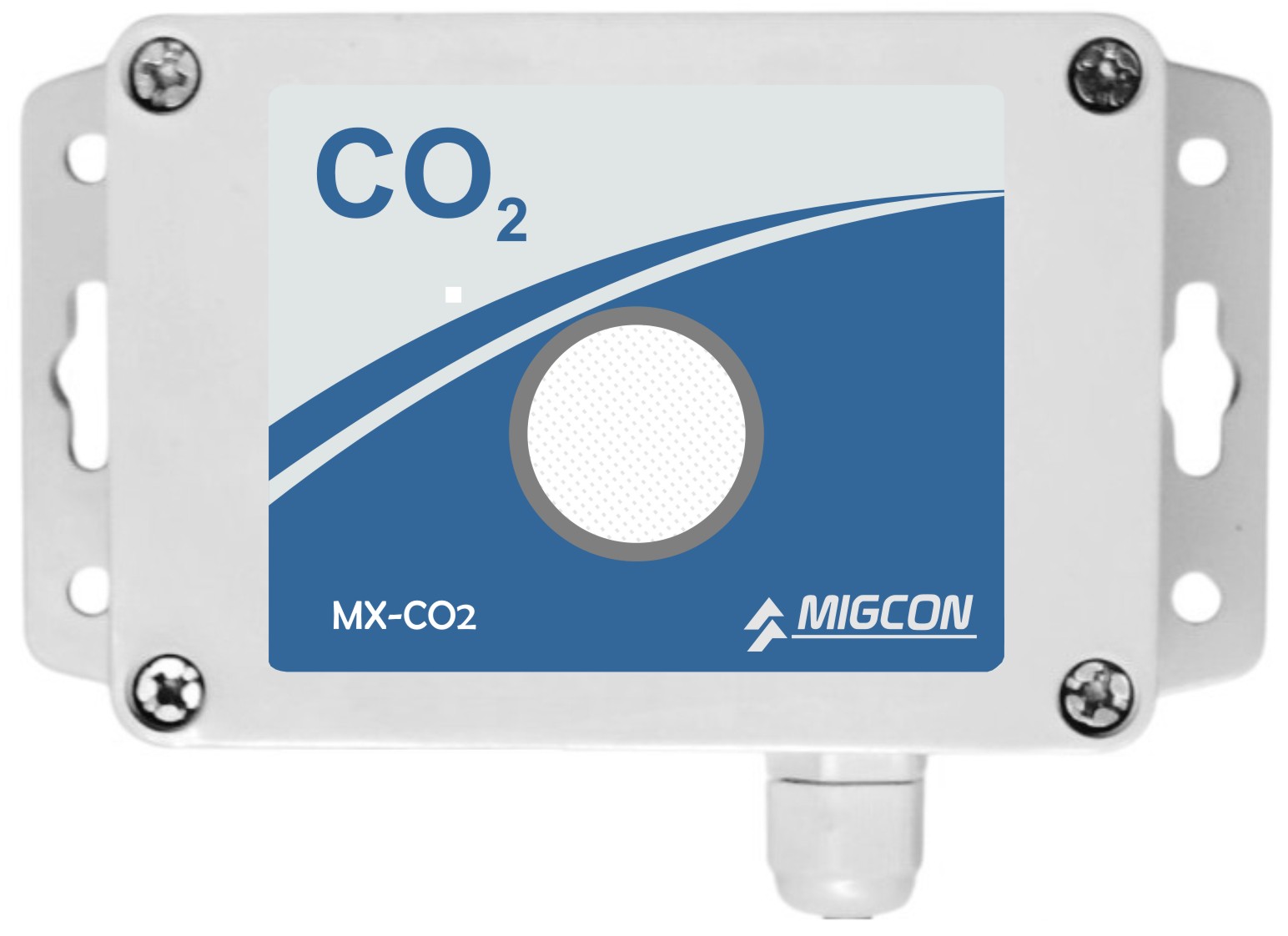

CO2 Transmitter

CO2 Transmitter
Differential Pressure Transmitter

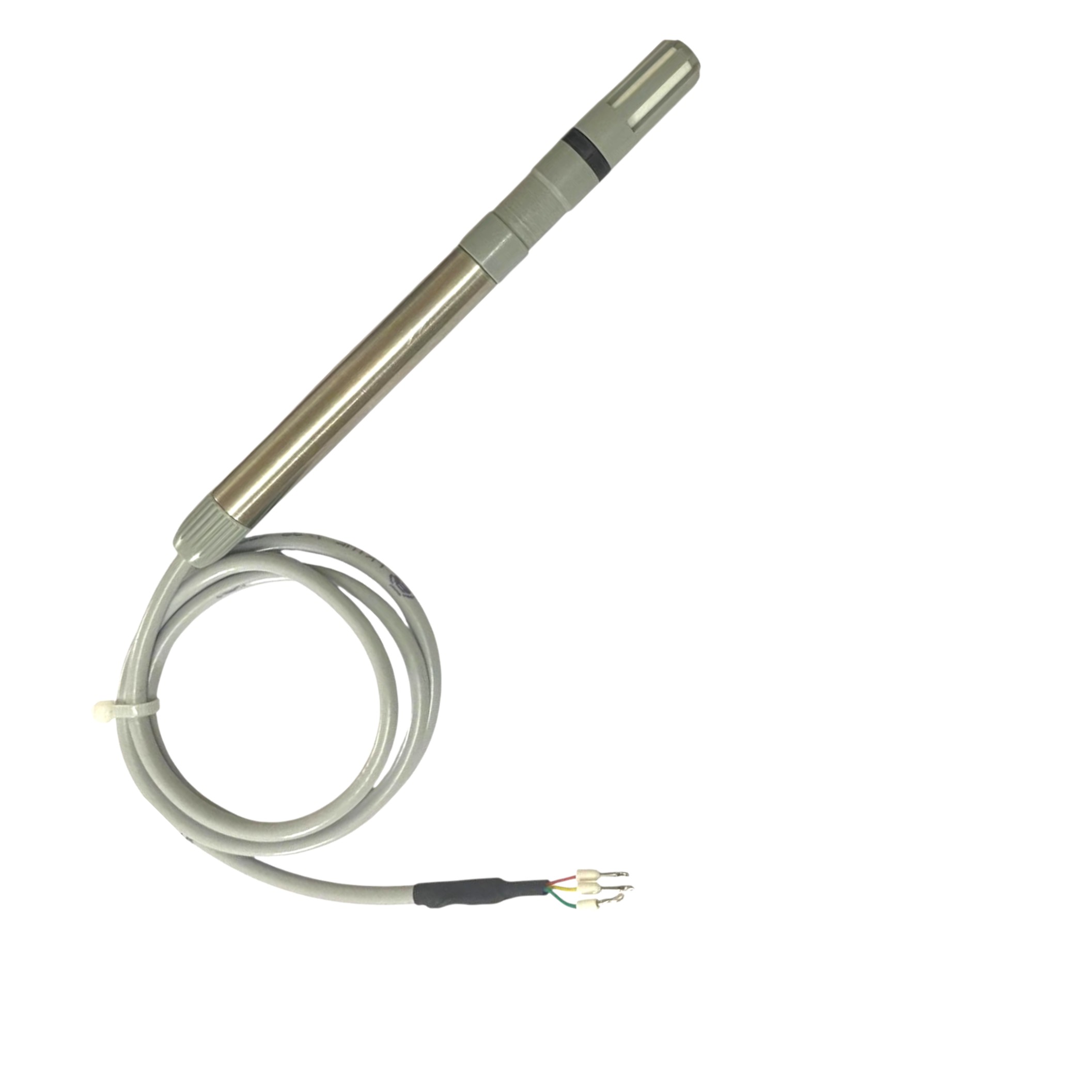

Temperature Humidity Transmitter (Only Probe)
Air Velocity Transmitter

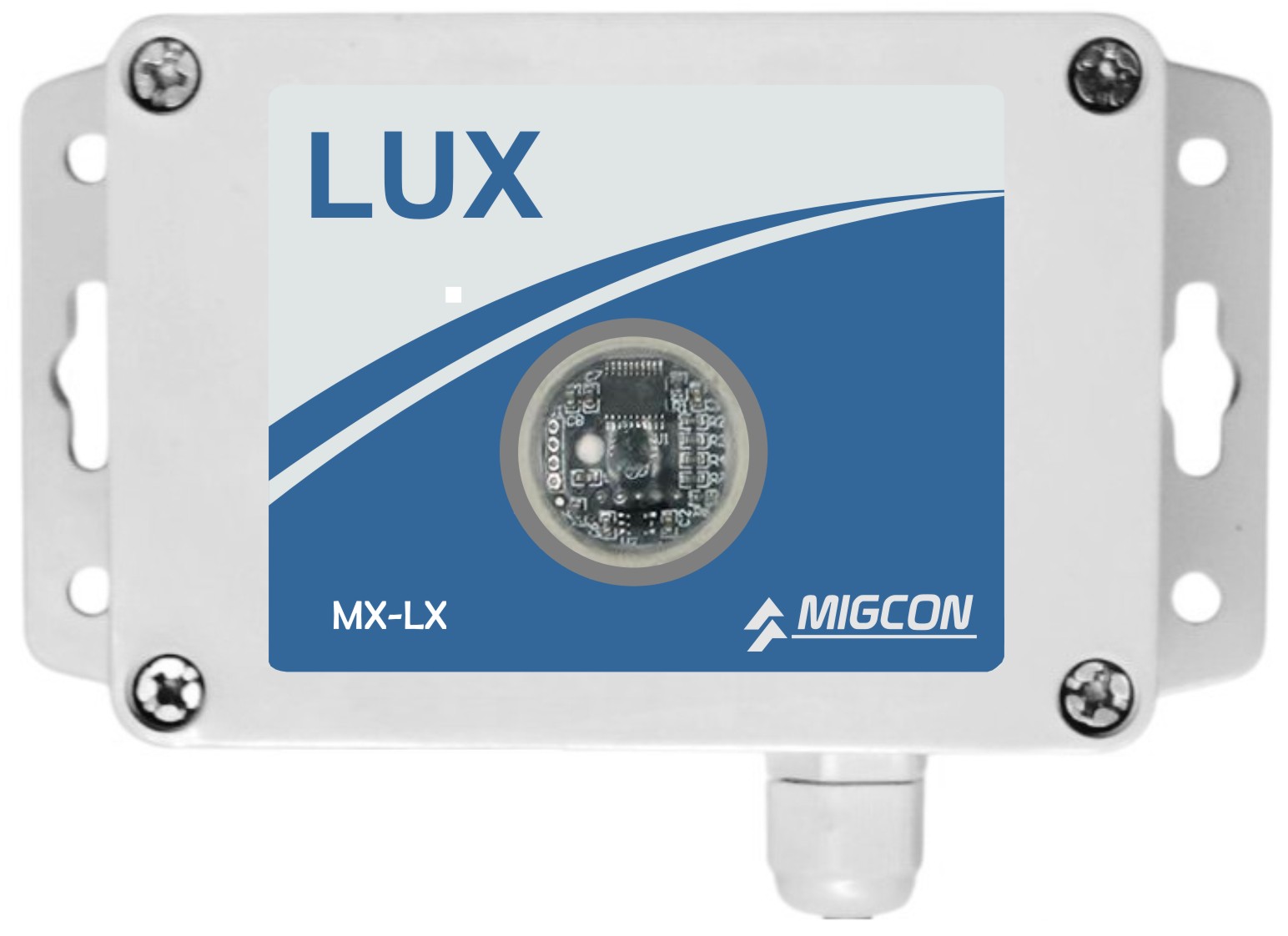

LUX Transmitter
